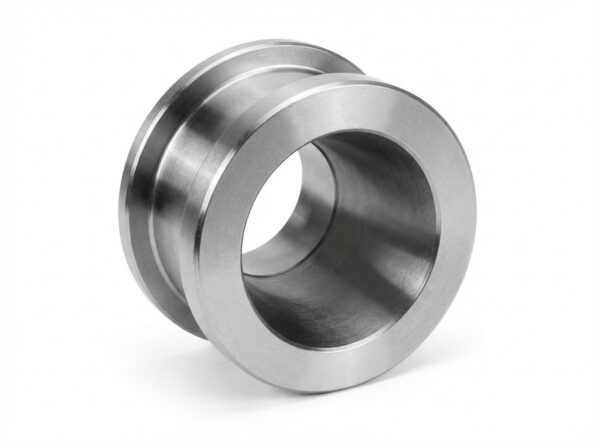

MTA Series – Morse Taper Adapters
High-precision Morse Taper Adapters designed to convert standard straight bore tool holders to accept Morse Taper (MT) shanks.
Compatibility: Accepts MT1, MT2, MT3, MT4, and MT5 tools.
Durability: Fully hardened and ground for superior wear resistance.
Application: Ideal for holding drills, reamers, and other tapered shank tools on CNC lathes.
Accuracy: Precision ground to ensure minimal runout.
| Code | d (Inner Dia) | D (Outer Dia) | L (Total Length) | L1 (Eff. Length) | D1 (Head Dia) | Weight (kg) |
|---|---|---|---|---|---|---|
| NC25-MTA1 | MTA1 | 25 | 75 | 60 | 34 | 0.28 |
| NC25-MTA2 | MTA2 | 25 | 75 | 60 | 34 | 0.23 |
| NC25-MTA3 | MTA3 | 25 | 90 | 60 | 34 | 0.21 |
| NC32-MTA1 | MTA1 | 32 | 100 | 75 | 42 | 0.53 |
| NC32-MTA2 | MTA2 | 32 | 100 | 75 | 42 | 0.45 |
| NC32-MTA3 | MTA3 | 32 | 100 | 75 | 42 | 0.47 |
| NC40-MTA1 | MTA1 | 40 | 87 | 82 | 50 | 0.85 |
| NC40-MTA2 | MTA2 | 40 | 87 | 82 | 50 | 0.75 |
| NC40-MTA3 | MTA3 | 40 | 87 | 82 | 50 | 0.64 |
| NC40-MTA4 | MTA4 | 40 | 116 | 86 | 50 | 0.72 |
| NC50-MTA1 | MTA1 | 50 | 120 | 100 | 58 | 1.95 |
| NC50-MTA2 | MTA2 | 50 | 120 | 100 | 58 | 1.83 |
| NC50-MTA3 | MTA3 | 50 | 120 | 100 | 58 | 1.66 |
| NC50-MTA4 | MTA4 | 50 | 146 | 126 | 58 | 1.39 |
| NC50-MTA5 | MTA5 | 50 | 146 | 126 | 58 | 0.94 |
Request a Quote for MTA Series
Please confirm the Code (e.g., NC32-MTA2) from the table above.
