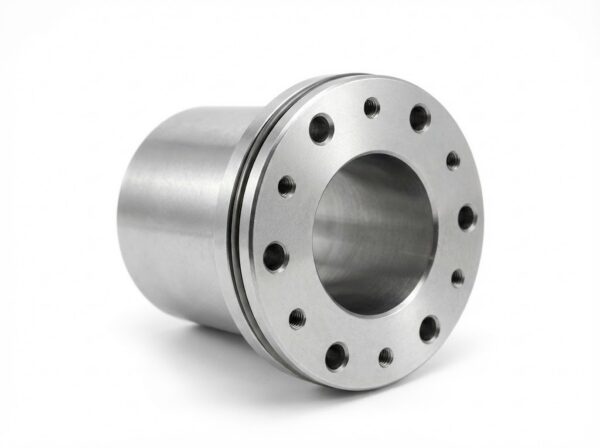

ZW Series – Coolant Conversion Sleeves
The ultimate coolant solution for CNC tool holders. Available in two distinct types to match your machining requirements:
ZW-031 (Exterior Type): Directs coolant to the outside of the tool for general turning and cooling.
ZW-032 (Interior Type): Channels coolant through the tool (center-feed), perfect for U-drills and deep hole drilling.
Benefit: significantly improves chip evacuation and extends tool life.
Range: Available for D16 to D50 holders.
| Model | Type | L | L1 | d | Suitable for (mm) |
|---|---|---|---|---|---|
| D16 | Exterior | 67 | 55 | 16 | 4/5/6/7/8/9/10/12/16 |
| D20 | Exterior | 77 | 65 | 20 | 5/6/8/10/12/14/16 |
| D25 | Exterior | 64 | 50 | 25 | 6/8/10/12/14/16/18/20 |
| D32 | Exterior | 84 | 70 | 32 | 6/8/10/12/14/16/18/20/25 |
| D40 | Exterior | 95 | 80 | 40 | 8/10/12/16/20/25/32 |
| D50 | Exterior | 95 | 83 | 50 | 8/10/12/16/20/25/32/40 |
| D16 | Interior | 50 | 45 | 16 | 4/5/6/7/8/9/10/12/16 |
| D20 | Interior | 67 | 55 | 20 | 5/6/8/10/12/14/16 |
| D25 | Interior | 72 | 65 | 25 | 6/8/10/12/14/16/18/20 |
| D32 | Interior | 85 | 70 | 32 | 6/8/10/12/14/16/18/20/25 |
| D40 | Interior | 100 | 85 | 40 | 8/10/12/16/20/25/32 |
| D50 | Interior | 105 | 90 | 50 | 6/8/10/12/16/20/25/32/40 |
Request a Quote for ZW Series
Please specify the Model and Type (Interior or Exterior).
